Instrument Transformer Series
Current transformers, potential transformers, and high-voltage combined metering units (MOF) from 0.5kV to 35kV. Precision metering up to Class 0.2S and reliable relay protection.
0.5 kV – 40.5 kV · CT / PT / MOFMatched Products
14
Instrument Transformers · Voltage Transformers (PT/VT)

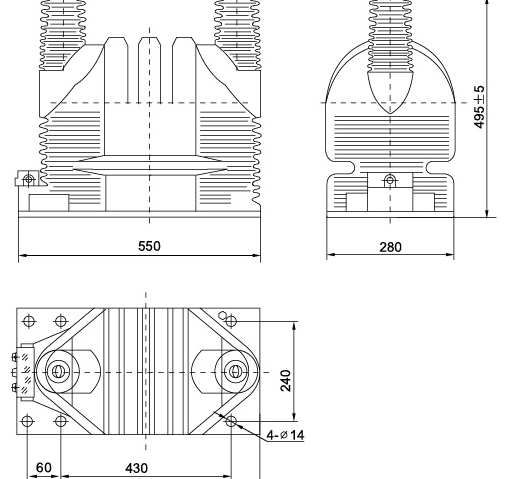

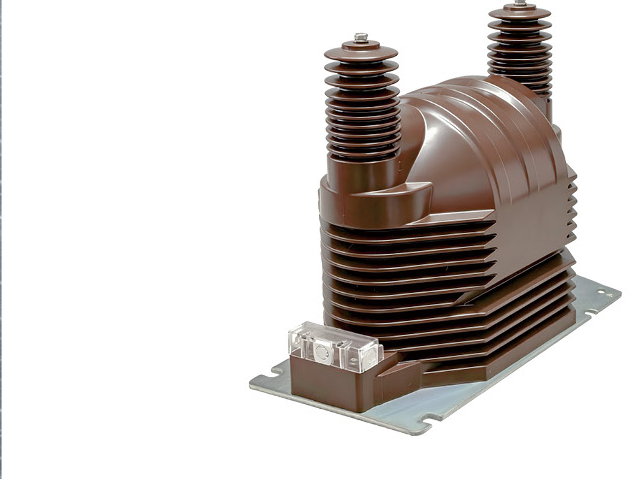

XinHuan JDZ9-35Q and JDZX9-35 indoor single-phase cast resin potential transformers designed for voltage measurement, electric energy metering,...
Instrument Transformers · Current Transformers (CT)

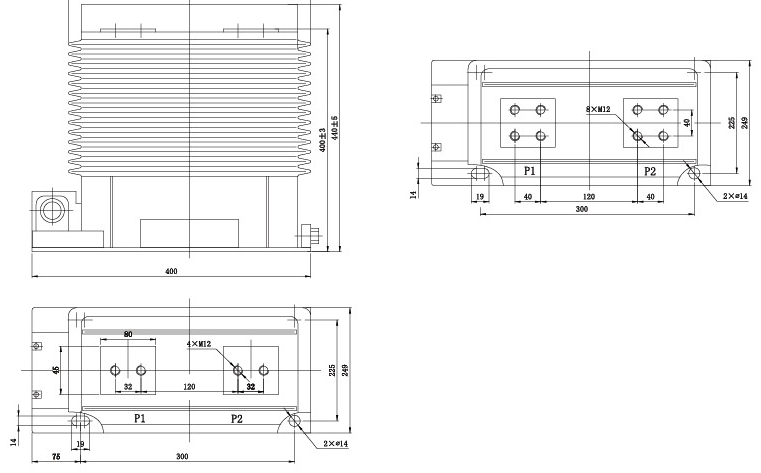

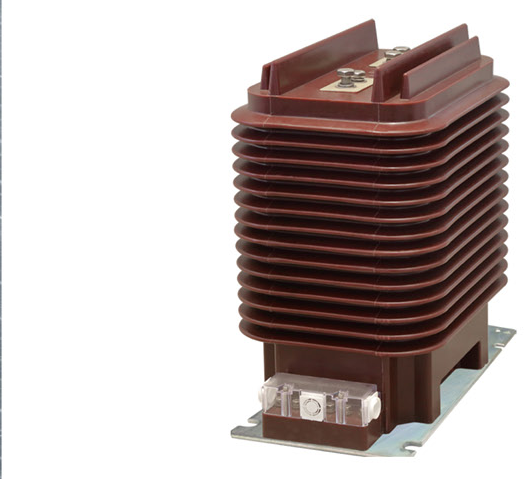

XinHuan post-type epoxy resin cast current transformer (LZZBJ9-35 / LZZBW-35) designed for current, electric energy metering, and relay protection...
Precision measurement and reliable protection instrument transformers engineered for utility revenue metering, switchgear cubicle mounting, and outdoor substation automation.
High-accuracy ratio and phase displacement guarantees from 1% to 120% rated primary current per IEC 61869-2.
Hydrophobic cycloaliphatic epoxy resin (HCEP) casting provides outstanding outdoor arc-tracking resistance and UV endurance.
3-phase 3-wire or 3-phase 4-wire combined 3CT + 3PT units in a single oil-immersed or dry-type outdoor enclosure (JLSZV-10/35).
Engineered to withstand primary system short-circuit currents up to 31.5 kA 3s (Ith) and 80 kA peak (Idyn) without mechanical failure.
| Type | Voltage | Accuracy | Application |
|---|---|---|---|
| Current (CT) | 0.5kV – 35kV | 0.2S, 0.5, 5P20 | Switchgear & protection |
| Voltage (PT/VT) | 0.5kV – 35kV | 0.2, 0.5, 3P | Metering & relay voltage |
| Combined MOF | 10kV, 33kV | 0.2S / 0.2 | Utility tariff metering |
| Zero Sequence CT | 10kV – 35kV | 10P10 | Earth fault detection |
