Instrument Transformers
Combined Metering Units (MOF/JLS)
SKU: 10KV_HV_PREPAYMENT_POWER_METERING_BOX_YFJLSZV_10W

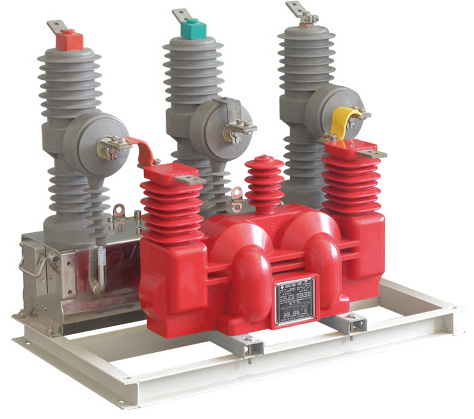

10kV High-Voltage Prepayment Power Metering Unit (YFJLSZV-10W / JLS-10)
Integrated high-voltage prepayment power metering station (YFJLSZV-10W / JLS-10). Combines precision combined CT/PT metering units, an intelligent multi-function energy meter, and a motor-driven vacuum load switch / circuit breaker. Automatically trips supply upon credit exhaustion to eliminate utility revenue loss.
Compliance Standards
IEC • ANSI • IEEE • GB
Quality Inspection
100% FAT Routine Tested

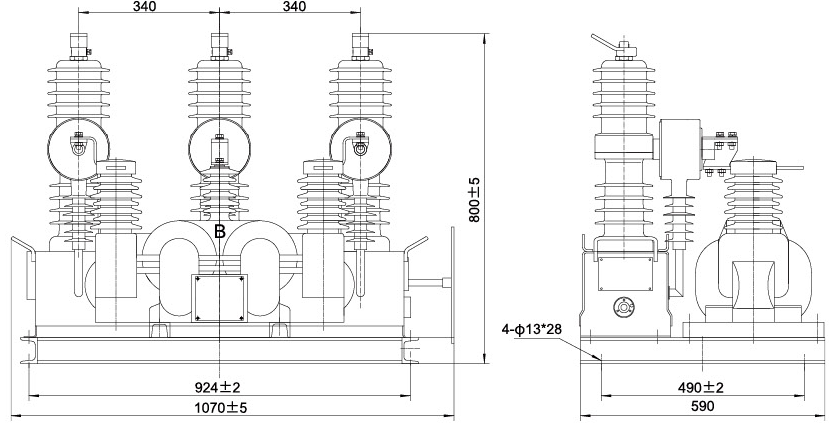

Engineering CAD
2D CAD / SLD Schematics
Global Logistics
Direct Seaport CIF Export
Engineering Datasheet
10kV High-Voltage Prepayment Power Metering Unit (YFJLSZV-10W / JLS-10) — Technical Parameters & Ratings
| System Voltage | 10 kV (3-Phase 3-Wire or 4-Wire) |
|---|---|
| Metering Accuracy | Class 0.2S (Active) / Class 0.5 (Reactive) |
| Prepayment Protocol | STS standard / IC Card / Remote 4G Cellular |
| Associated Switch | Vacuum Circuit Breaker (ZW32) or Load Switch |
| Enclosure Material | Stainless steel (SS304) or hot-dip galvanized steel |
| Protection Rating | IP54 Outdoor Weatherproof |
Engineering Submittal & Layout Workbench
Substation Room Fit & Multi-Equipment CAD Footprints
Select your equipment type and capacity to inspect verified GA engineering CAD line drawings, Single Line Diagrams (SLD), dimensions (L × W × H), roller gauge, and submittal clearances before procurement.
Available Ratings:
11kV / 33kV Dual Voltage
IEC 60076 / IEEE Compliant
100% Routine Factory Tested
Export Nitrogen / Seaworthy Pack
1000 kVA Technical Dimensions
IEC 60076-1International utility & industrial submittal specifications
| Overall Length (L) | 1,750 mm |
|---|---|
| Overall Width (W) | 1,120 mm |
| Overall Height (H) | 1,780 mm |
| Roller Wheel Track Gauge (D) | 820 mm |
| Total Equipment Net Weight | 3,820 kg |
| Min Substation Clearance | 1,000 mm surrounding |
| Rated Voltage / System | 11 kV / 33 kV Dual Primary |
| Applicable Standard | IEC 60076-1 / IEEE C57 |
Download Technical Data Sheet (PDF)
Request Factory Engineering Submittal Package
Full CAD DXF/DWG vector footprints, 3D STEP models, and custom project submittals provided within 2 hours upon request.
XinHuan Hefei Manufacturing Plant — Precision Winding & Assembly Line
Factory Build Quality
10kV High-Voltage Prepayment Power Metering Unit (YFJLSZV-10W / JLS-10) — Internal Construction & Premium Materials
Built with tier-1 certified raw materials engineered for long operational life (>30 years), superior dielectric withstand, and high short-circuit withstand capacity.
Silicon Steel Core
High-grade grain-oriented cold-rolled silicon steel with step-lap mitered joints for low $P_o$ losses.
100% Copper Windings
Electrolytic oxygen-free copper with high thermal grade insulation for surge resistance.
Precision Tap Changer
De-energized tap switch ($\pm 2 \times 2.5\%$) or on-load vacuum tap changer (OLTC) optional.
Protection & Sensors
Buchholz gas relay, magnetic oil gauge (MOG), and dial thermometers with alarm contacts.
Quality Assurance
CNAS & ISO 9001 Certified
10kV High-Voltage Prepayment Power Metering Unit (YFJLSZV-10W / JLS-10) — 100% Factory Acceptance Testing (FAT)
Every transformer unit manufactured by XinHuan undergoes mandatory routine factory testing prior to container dispatch. Full certified routine and type test submittal reports are provided with commercial documentation:
1. Insulation Resistance
Megger test (HV to LV, HV to Earth, LV to Earth) >1000 MΩ.
2. Voltage Ratio & Vector
Turns ratio check across all taps with phase displacement check.
3. Winding DC Resistance
Precision Kelvin bridge measurement across all tap positions.
4. Short-Circuit Impedance
Load loss ($P_k$) measurement corrected to reference temp (75°C).
5. No-Load Loss & Current
Core excitation test ($P_o$ and $I_o$) at rated sinusoidal voltage.
6. AC Voltage Withstand
Power-frequency separate source test (e.g. 50kV/70kV 1 min).
7. Lightning Impulse (BIL)
Full wave & chopped wave impulse withstand (BIL up to 170kV).
8. Partial Discharge & Seals
Ultra-low discharge (<5 pC) and pressurized oil/gas tightness test.
Logistics Intelligence
Global CIF / FOB Delivery
10kV High-Voltage Prepayment Power Metering Unit (YFJLSZV-10W / JLS-10) — Export Packaging & Seaport Logistics
Full enclosure crate with shock-damped transport base.
Production Lead Time
Standard manufacturing cycle is 4 to 6 weeks from approval of GA blueprints and single-line diagrams.
Heavy-Duty Export Packaging
Vacuum moisture barrier preservation, nitrogen blanketing, and reinforced steel-frame structural crate skids.
Direct Seaport Routes
Fast ocean freight to Port of Chancay & Callao (25-35 days), Manila, Lagos, and Middle East ports.
Equipment Video Inspection
100% TestedWatch XinHuan technicians perform routine dielectric testing, winding insulation checks, and quality inspections inside our Hefei manufacturing plant.
Every unit 100% routine tested before container loading.
Direct Factory Consultation
Need Custom Project Engineering?
Send your single-line diagram (SLD), voltage ratings, or tender specifications. Our chief electrical engineers will review and issue an actionable CIF quotation within 24 hours.
Custom Voltage Ratios
High-Altitude Derating
Short-Circuit Impedance
Third-Party FAT Witness
10kV High-Voltage Prepayment Power Metering Unit (YFJLSZV-10W / JLS-10) — Engineering & Procurement FAQs
Frequently asked questions regarding specifications, certifications, and delivery for 10kV High-Voltage Prepayment Power Metering Unit (YFJLSZV-10W / JLS-10).
Request our technical brochure covering STS token integration, GSM/GPRS AMR communication, and prepayment switchgear configurations.
Meets IEC 61869-4, IEC 62053, and STS prepayment token standards. Tamper-evident electronic seals.
Standard manufacturing lead time is 4 to 6 weeks following approval of GA blueprints and single-line diagrams. Direct sea container shipping is available under FOB, CFR, or CIF terms with full customs documentation (Bill of Lading, Certificate of Origin, Test Reports).
